Crossman Surplus
Equipment & Specifications

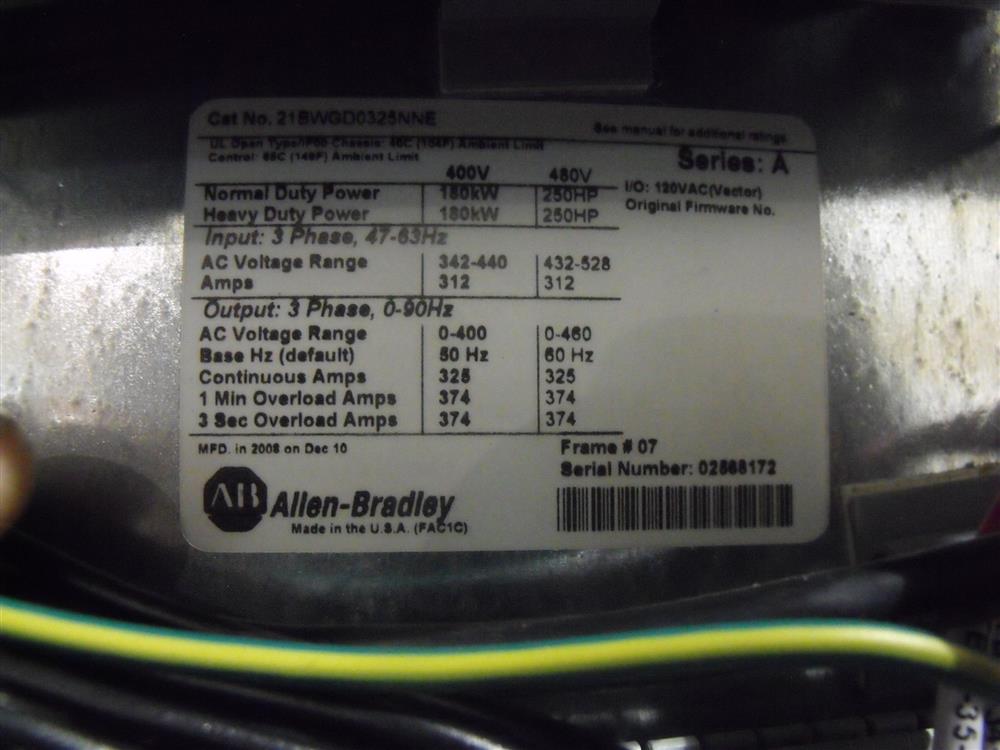

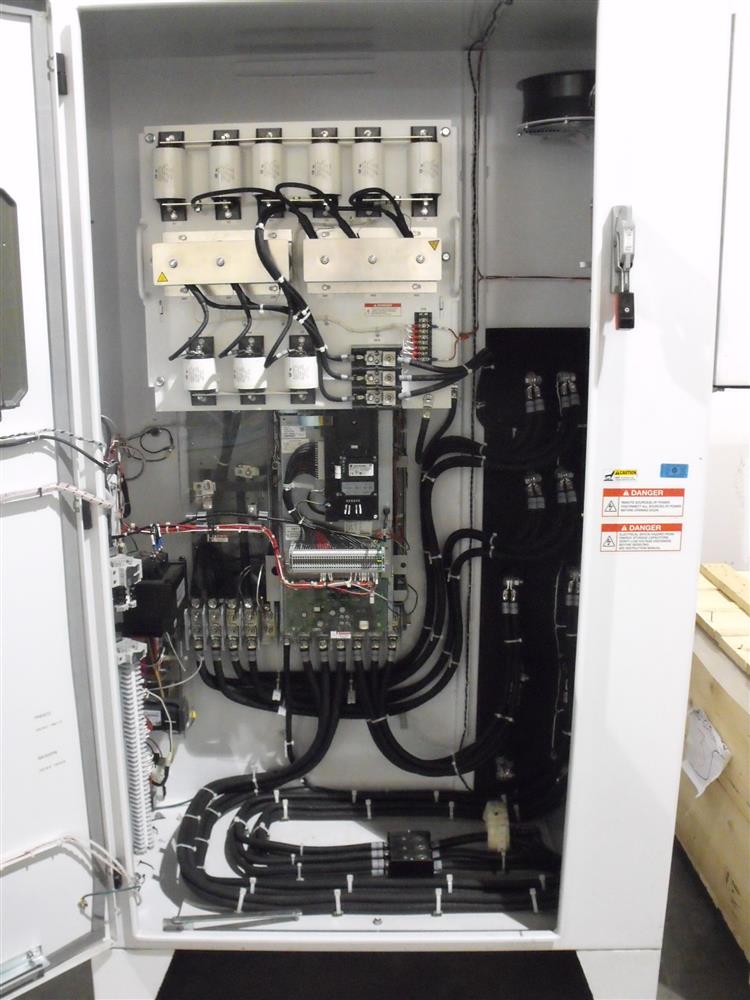

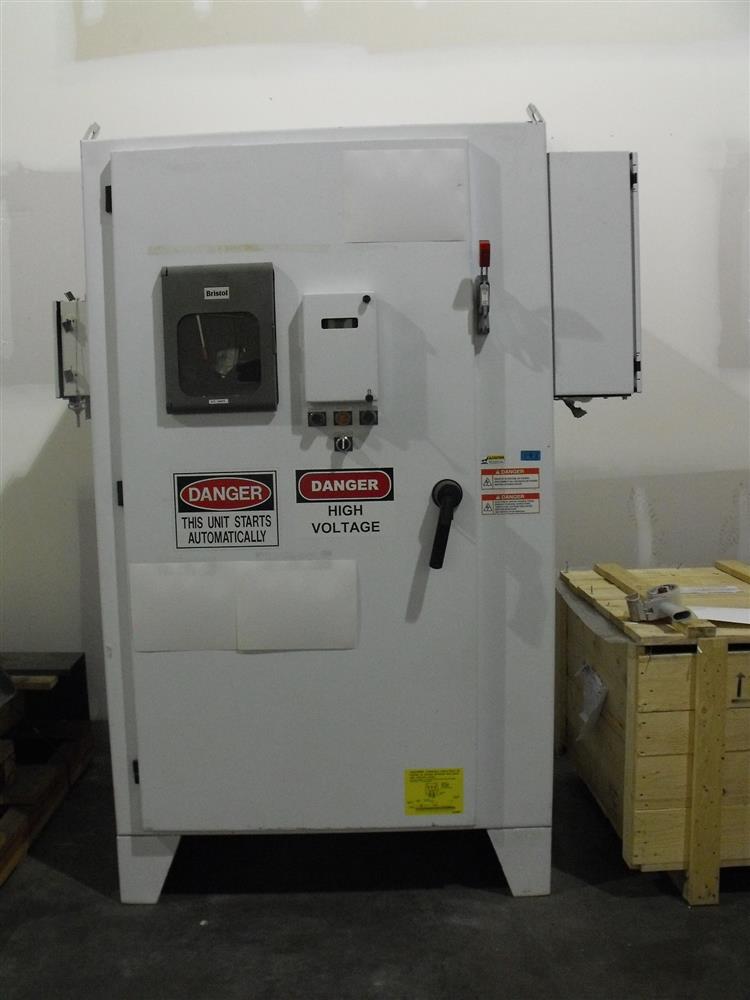

250 HP Allen Bradley VFD
250 HP Allen Bradley VFD Information
SPECIFICATIONS: Series A, frame 07, 480 Volt, 312 amps, Continuous, Nema 3R enclosure, input circuit breaker, Bristol chart recorder, output sine wave filter, setup for downhole submersible pump application. The unit was used for a short period of time with very few hours. It can be used on different applications.
Model Number: 21BWGD0325NNE
Serial Number: 02568172
Price: $4,000.00, Additional preperation fees may apply

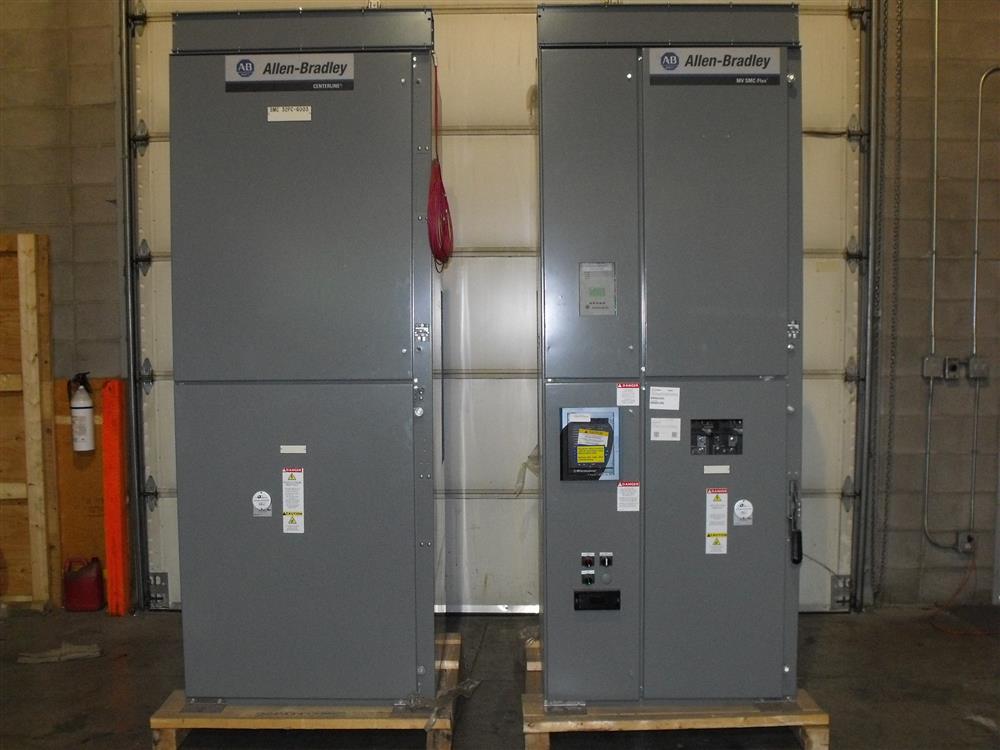

Allen Bradley Soft Start - 4.16KV
Allen Bradley Soft Start - 4.16KV Information
SPECIFICATIONS: 360AMP, 4160VOLT Rated Starter Cells, NEMA1 enclosure ANSI 49 Grey, 1200AMP horizontal bus 60ka (RMS symmetrical), Multilin SR469 motor management relay comes with ground fault CT 2000:1, 2KVA CPT with primary and secondary fusing. Currently set up for 1500HP and comes with 19R fuses and 250:5 CTs
Model Number: MV SMC-Flex
Serial Number: 7008885-005-08
Price: $35,000.00, Additional preperation fees may apply

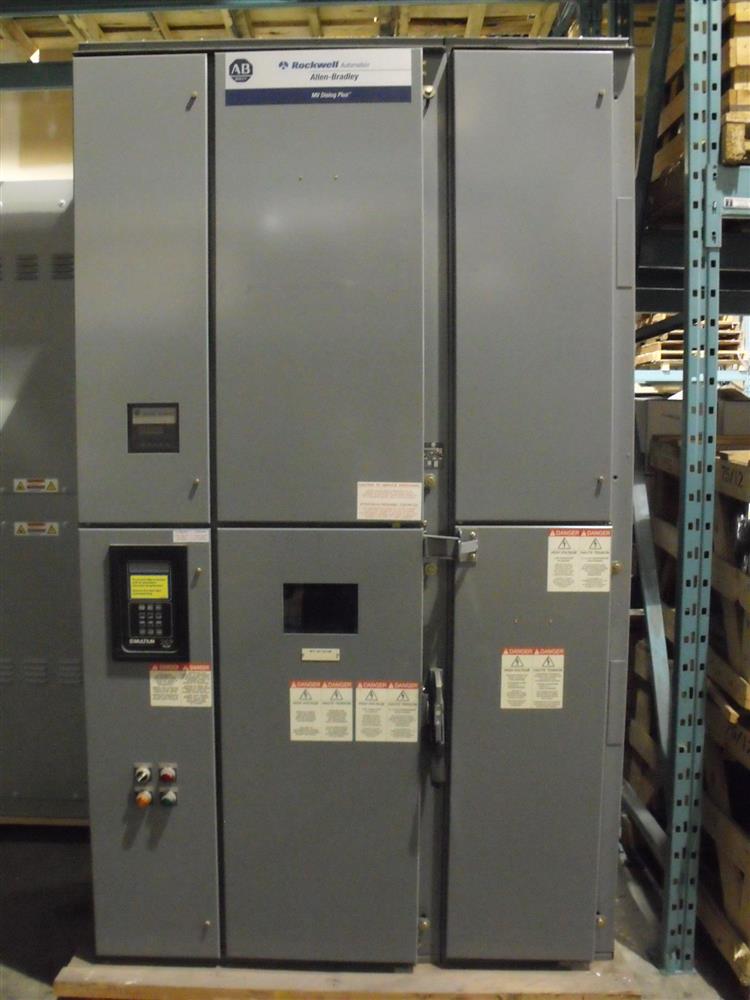

Allen Bradley Soft Start - 4.16KV
Allen Bradley Soft Start - 4.16KV Information
SPECIFICATIONS: Rockwell Allen-Bradley MV Dialog Plus combination, type solid state, reduced voltage starter. NEMA1 Enclosed, 1200AMP main bus, main non-load-break isolating switch and operating handle, fused input vaccum contactor, bypass vacuum contactor for power factor correction capacitors, 500VA control power transformer with primary and secondary fusing, Multilin 269 Plus motor protection relay setup for 100ohm platinum RTD'S, motor heater circuit with 120VOLT supply from an external source, comes with original manuals and schematics.
Presently starter is setup with the following accessories: Item Power Cell Rating, HP Power Fuse Rating, C.T. Ratio 1 180AMPS 700 9R 150 / 5.
NOTE – Can be reconfigured for alternate HP ratings (full load current to be less than power cell rating)
Model Number: MV Dialog Plus
Serial Number: 7001644-003-98
Price: $10,000.00, Additional preperation fees may apply
ASCO 7000 Series 1600A Transfer Switch
ASCO 7000 Series 1600A Transfer Switch Information
SPECIFICATIONS: Automatic Closed Transition Soft Load Transfer & Bypass Isolation Switch, 1600AMP, 480VOLT
1600AMP, 480VOLT, 3PHASE 3 WIRE, Enclosure Type 2, Drip Proof Indoor, Seam welded and free standing, Soft load controller, user control & interface RS 485, Historical data logging, Control panel display, Original manuals detailing (as built) and test reports.
Model Number: G7ALSB31600N5XE
Serial Number: 485738
Price: Please call for more information.
